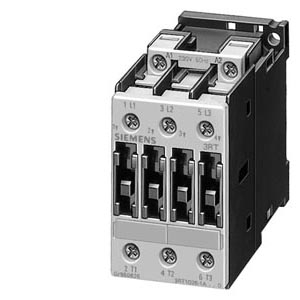

SIEMENS - Contactor AC-3 7,5kW/400V, 230V AC, 50 Hz, 3P, S0, schroefklemmen
1 3RT10251AP00

De afbeelding is louter informatief en niet bindend
ARTIKELREFERENTIE
Referentie leverancier
3RT10251AP00
Commerciële referentie leverancier
3RT1025-1AP00
EAN
4011209291072
Cebeo ID
288903
Categorie
PC3
LINKS
VOORRAAD
OMSCHRIJVING
Contactor AC-3 7,5kW/400V, 230V AC, 50 Hz, 3P, S0, schroefklemmen
- Nom. stuurspanning Us bij AC 50HZ: 230V - 230V
- Nom. stuurspanning Us bij AC 60HZ: 230V - 230V
- Nom. stuurspanning Us bij DC: 0V - 0V
- Type spanning voor bekrachtiging: AC
- Nom. bedrijfsstroom Ie bij AC-1, 400 V: 40A
- Nom. bedrijfsstroom Ie bij AC-3, 400 V: 17A
- Nom. vermogen bij AC-3, 400 V: 7.5kW
- Nom. bedrijfsstroom Ie bij AC-4, 400 V: 15.5A
- Nom. bedrijfsvermogen bij AC-4, 400 V: 7.5kW
- Modulaire uitvoering (DIN-rail): Ja
- Aantal hulpcontacten als maakcontact: 0
- Aantal hulpcontacten als verbreekcontact: 0
- Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
- Aantal hoofdcontacten als verbreekcontact: 0
- Aantal hoofdcontacten als maakcontact: 3
VERPAKKING
Eenheidsverpakking:
1
Bestelhoeveelheid
1
