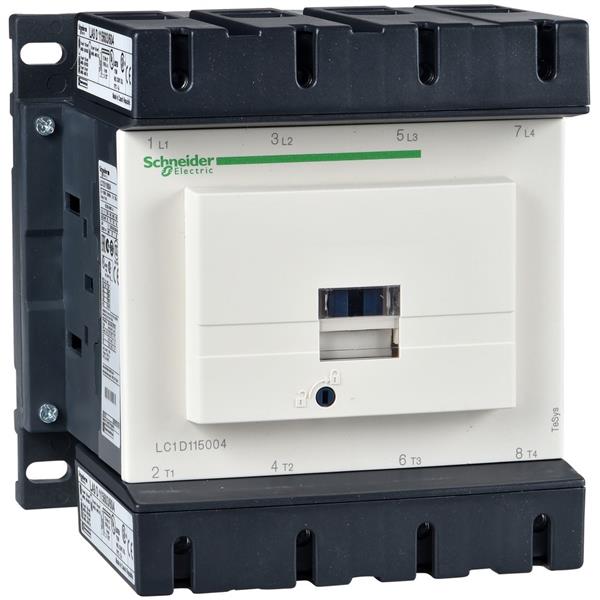

Schneider Automation - Contactor 200A AC-1 - 4P - 230V AC 50...60Hz
58 LC1D115004P7

De afbeelding is louter informatief en niet bindend
ARTIKELREFERENTIE
Referentie leverancier
LC1D115004P7
EAN
3389110053074
Cebeo ID
348811
Serie:
Motorvertrekken TeSys < 150A
Categorie
PC3
LINKS
VOORRAAD
OMSCHRIJVING
Contactor 200A AC-1 - 4P - 230V AC 50...60Hz
- Nom. stuurspanning Us bij AC 50HZ: 230V - 230V
- Nom. stuurspanning Us bij AC 60HZ: 230V - 230V
- Nom. stuurspanning Us bij DC: 0V - 0V
- Type spanning voor bekrachtiging: AC
- Nom. bedrijfsstroom Ie bij AC-1, 400 V: 200A
- Nom. bedrijfsstroom Ie bij AC-3, 400 V: 115A
- Nom. vermogen bij AC-3, 400 V: 55kW
- Nom. bedrijfsstroom Ie bij AC-4, 400 V: 0A
- Nom. bedrijfsvermogen bij AC-4, 400 V: 0kW
- Modulaire uitvoering (DIN-rail): Nee
- Aantal hulpcontacten als maakcontact: 0
- Aantal hulpcontacten als verbreekcontact: 0
- Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
- Aantal hoofdcontacten als verbreekcontact: 0
- Aantal hoofdcontacten als maakcontact: 4
VERPAKKING
Eenheidsverpakking:
1
Bestelhoeveelheid
1
