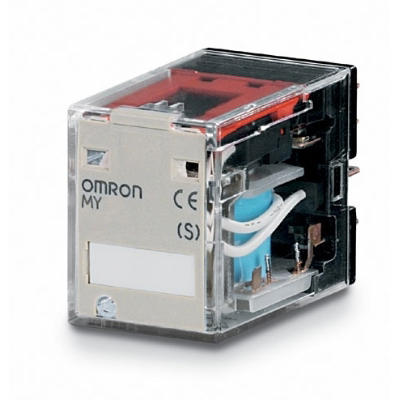

OMRON - Miniatuur relais, led-indicatie, 24 VDC, 4 x wissel, 5 A, voor aansluitvoet
49 MY4N24VDC

De afbeelding is louter informatief en niet bindend
ARTIKELREFERENTIE
Referentie leverancier
MYS 4108F
Commerciële referentie leverancier
MY4N 24VDC (S)
EAN
4536854363641
Cebeo ID
53723
Categorie
PC3
LINKS
VOORRAAD
OMSCHRIJVING
Miniatuur relais, led-indicatie, 24 VDC, 4 x wissel, 5 A, voor aansluitvoet
- Uitvoering elektrische aansluiting: Plug-in aansluiting
- Met afneembare klemmen: Nee
- Nominale stroom: 3A
- Nom. stuurspanning Us bij AC 50HZ: 0V - 0V
- Nom. stuurspanning Us bij AC 60HZ: 0V - 0V
- Nom. stuurspanning Us bij DC: 19.2V - 26.4V
- Type spanning voor bekrachtiging: DC
- Aandrijving, polarisatie: Gepolariseerd
- Schakelverhouding van de aandrijving: Monostabiel
- Aantal contacten als verbreekcontact: 0
- Aantal contacten als maakcontact: 0
- Aantal contacten als wisselcontact: 4
- Met dwanggeleide contacten: Nee
- Type schakelcontact: enkelvoudig contact
- Compleet apparaat met sokkel: Nee
- Met LED indicatie: Ja
- Beschermingsgraad (IP): Overig
- Breedte: 21.5mm
- Hoogte: 28mm
- Diepte: 36mm
VERPAKKING
Eenheidsverpakking:
1
Bestelhoeveelheid
1
