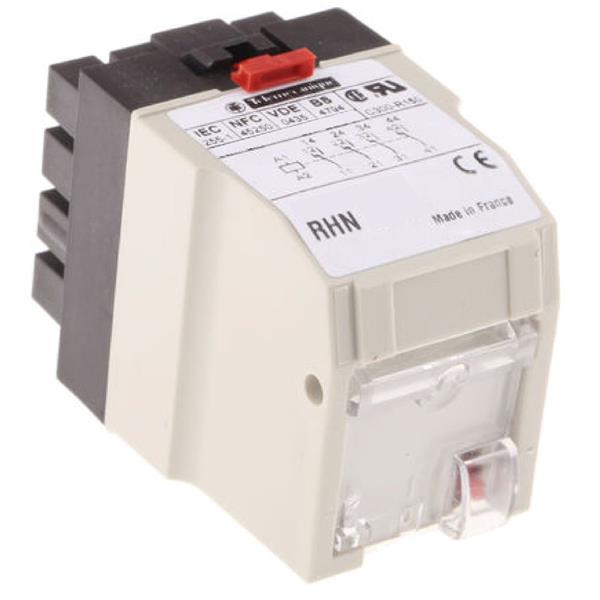

Schneider Automation - Ogenblikkelijk relais - 220V AC 50Hz- 4NO/NC
58 RHN411M

De afbeelding is louter informatief en niet bindend
ARTIKELREFERENTIE
Referentie leverancier
RHN411M
EAN
3389110162868
Cebeo ID
9963
Serie:
Veiligheid en automatiseringstoebehoren
Categorie
PC3
LINKS
VOORRAAD
OMSCHRIJVING
Ogenblikkelijk relais - 220V AC 50Hz- 4NO/NC
- Uitvoering elektrische aansluiting: Plug-in aansluiting
- Met afneembare klemmen: Nee
- Nominale stroom: 5A
- Nom. stuurspanning Us bij AC 50HZ: 220V - 220V
- Nom. stuurspanning Us bij AC 60HZ: 220V - 220V
- Type spanning voor bekrachtiging: AC
- Aandrijving, polarisatie: Ongepolariseerd
- Schakelverhouding van de aandrijving: Monostabiel
- Aantal contacten als verbreekcontact: 0
- Aantal contacten als maakcontact: 0
- Aantal contacten als wisselcontact: 4
- Met dwanggeleide contacten: Nee
- Type schakelcontact: Overig
- Compleet apparaat met sokkel: Nee
- Met LED indicatie: Nee
- Beschermingsgraad (IP): IP40
- Breedte: 33mm
- Hoogte: 43mm
- Diepte: 54mm
VERPAKKING
Eenheidsverpakking:
1
Bestelhoeveelheid
1
