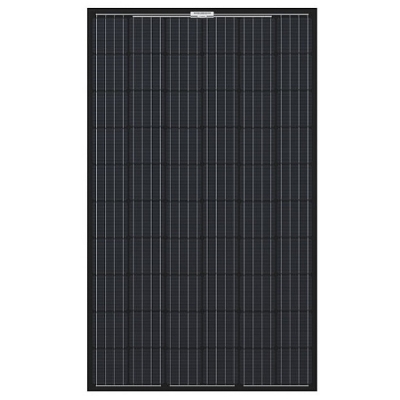

Q Cells - Zonnepaneel - Q.peak BLK-G4.1 - 300Wp - MONOBLACK Frame zwart - 1670x1000x32mm
1003 QPEAKBLKG41300

De afbeelding is louter informatief en niet bindend
ARTIKELREFERENTIE
Referentie leverancier
Q.PEAKBLK-G4.1-
Cebeo ID
6031110
Categorie
PC13
VOORRAAD
OMSCHRIJVING
Zonnepaneel - Q.peak BLK-G4.1 - 300Wp - MONOBLACK Frame zwart - 1670x1000x32mm
- Celmateriaal: Monokristallijn
- Aantal cellen: 60
- MPP vermogen (Maximum Power Point): 300Wp
- Max. systeemspanning: 1000V
- MPP-spanning: 32.41V
- Nullastspanning: 39.76V
- Mpp-stroom: 9.26A
- Kortsluitstroom: 9.77A
- Vermogenstolerantie: 0% - 5%
- Module-rendement: 18%
- Temperatuurcoëfficiënt Pmpp: -0.39%/K
- Temperatuurcoëfficiënt Uoc: -0.28%/K
- Temperatuurcoëfficiënt Isc: 0.04%/K
- Lengte: 1670mm
- Breedte: 1000mm
- Hoogte: 32mm
- Gewicht: 18.5kg
- Met frame: Ja
- Kleur frame: Zwart
- Met aansluitkabel: Ja
- Kabellengte: 1000mm
- Bedrijfstemperatuur: -40°C - 85°C
- Glas met antireflectie coating: Ja
VERPAKKING
Eenheidsverpakking:
1
Bestelhoeveelheid
1
